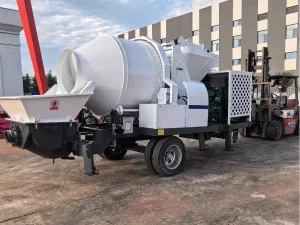

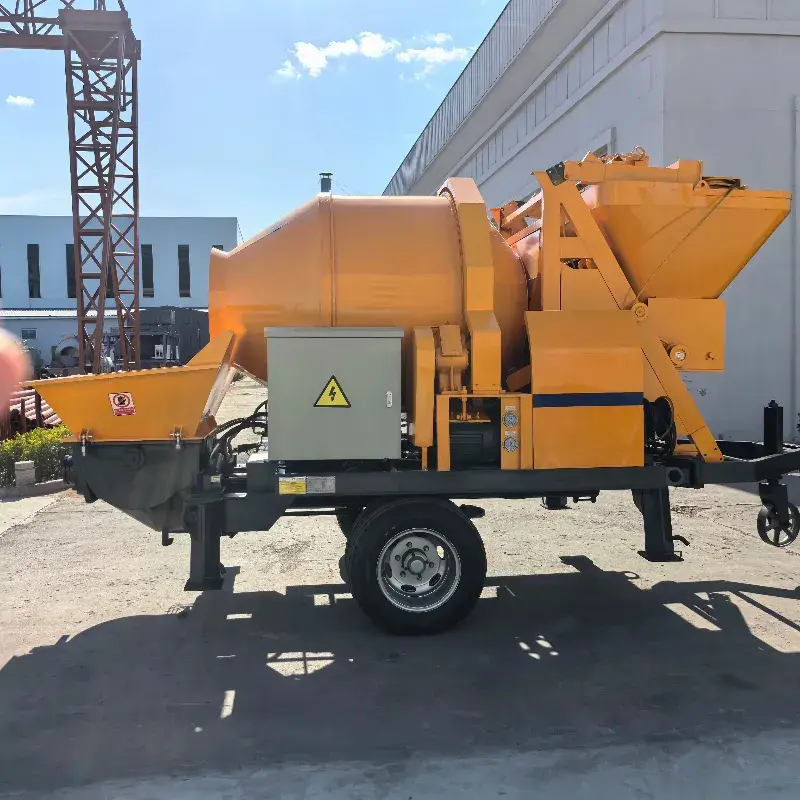

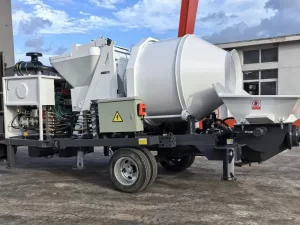

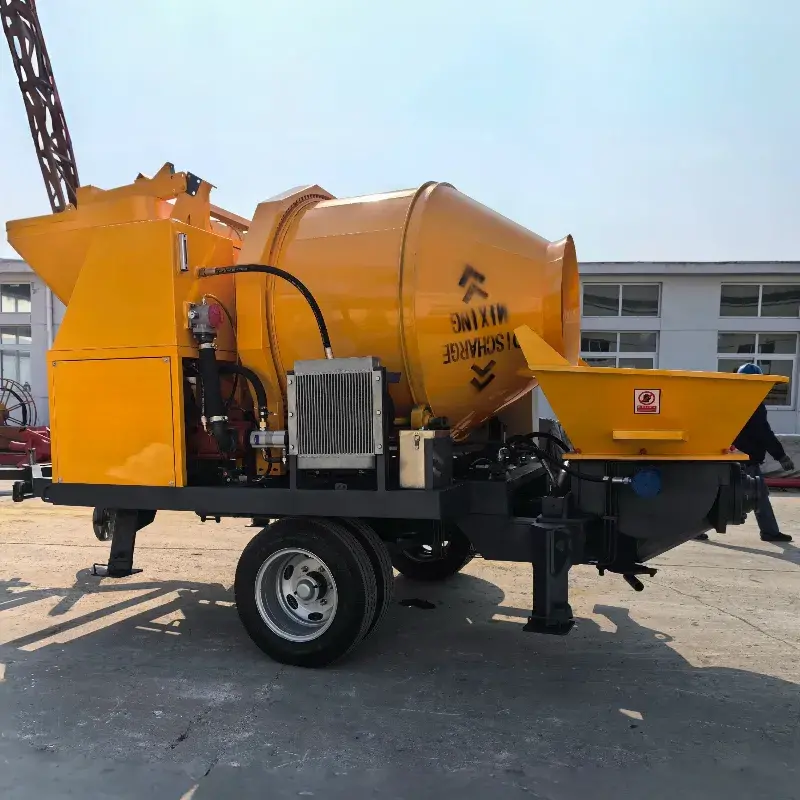

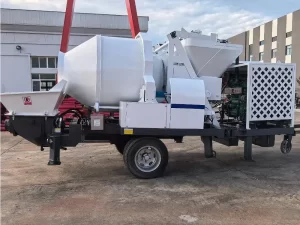

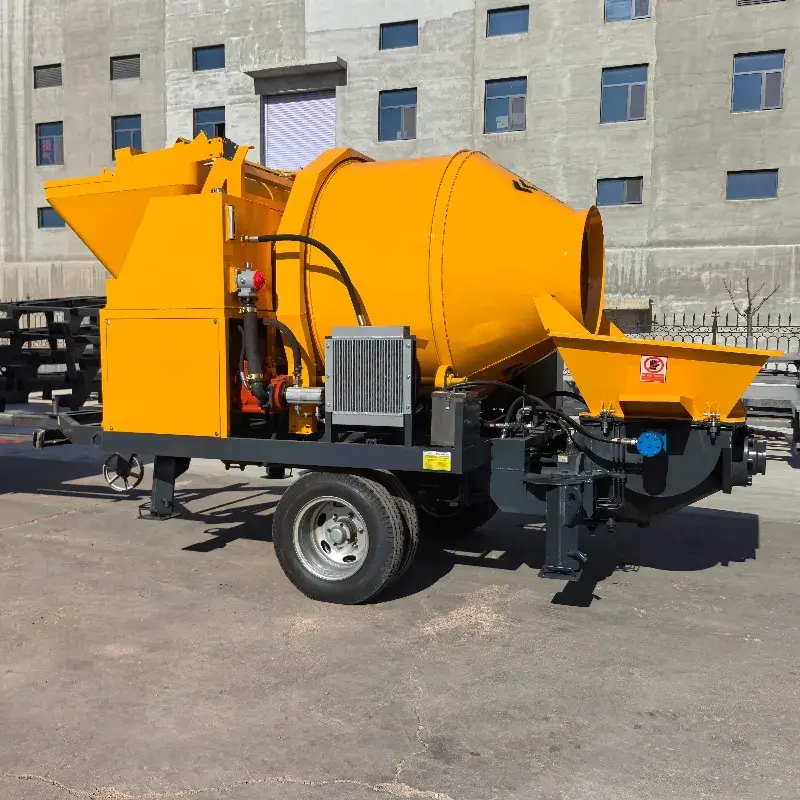

Concrete Mixer With Pump
Model: JBS30,JBS40;JBTS30,JBTS40,etc
Max. Theo.Pumping Capacity(m³/h): 30–40
Concrete Mixer Type: Drum Mixer
Main electric motor(kW): 37–82
Conveying Distance (Vertical/Level)(m):70/300
The concrete mixing pump is a new type of equipment, available in both electric and diesel-powered versions. It integrates the functions of a concrete mixer truck and a concrete trailer pump. This equipment utilizes a fully hydraulic pumping system, featuring large concrete pouring capacity, stable performance, small size, and minimal operating space.
Introduction
The concrete mixing pump is a new type of equipment, available in both electric and diesel-powered versions. It integrates the functions of a concrete mixer truck and a concrete trailer pump. This equipment utilizes a fully hydraulic pumping system, featuring large concrete pouring capacity, stable performance, small size, and minimal operating space.

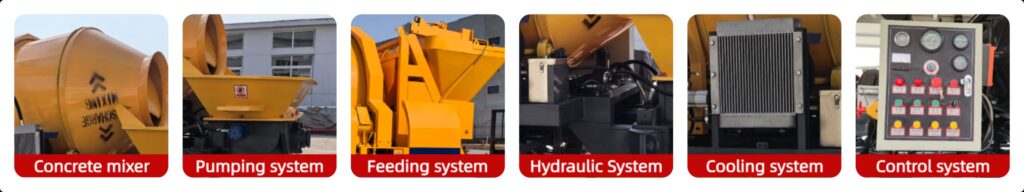

Main Components of Concrete Mixer With Pump
The motor-powered concrete mixing pump is mainly composed of a mixing system, a pumping system, a hydraulic oil pump, a lubrication system, a control system, a motor, a mobile frame, a concrete pipe and accessories.
Power system: Provides power for the whole machine, usually using an electric motor.
Mixing system: Responsible for mixing raw materials into concrete, common types include drum mixers, twin-shaft mixers and planetary mixers.
Pumping system: Transports concrete to a designated location, mainly composed of pumps, pipes and control systems.
Hydraulic system: Provides power for the mixer and pump to ensure that all parts of the machine can work properly.
Chassis: The frame that supports and carries the entire concrete mixing pump, including the engine, wheels and other necessary moving parts.
The diesel engine powered concrete mixing pump is mainly composed of hopper, mixing system, pumping system, hydraulic system, conveying system, control system, diesel engine and other components.
Hopper: used to store concrete raw materials.
Mixing system: responsible for mixing cement, sand, gravel, water and other raw materials evenly to form the required concrete.
Pumping system: including pumps, pipelines and control systems, responsible for conveying concrete to the designated location.
Hydraulic system: provides power to drive the movement of pistons and distribution valves.
Diesel engine: as a power source, drives the operation of the entire system.
Technical Specification
| Model | JBS30 | JBS40 | ||
|---|---|---|---|---|
| Theoretical capacity(m³/h) | 30 | 40 | ||
| Max. concrete pumping pressure(Mpa) | 10 | 10 | ||
| Power type | Motor | |||
| Main electric motor(kW) | 37 | 45 | ||
| Main oil pump | Kawasaki | Kawasaki | ||
| Main oil pump capacity(ml/min) | 71 | 112 | ||
| Theoretical delivery distance(m) | 120/350 | 160/500 | ||
| Hopper capacity(L) | 550 | 550 | ||
| Max. aggregate diameter(mm) | 20/30 | 30/40 | ||
| Inside diameter of delivery pipe(mm) | 125 | 150 | ||
| Loading capacity of the mixer(L) | 560 | 720 | ||
| Unloading capacity of the mixer(L) | 350 | 450 | ||
| Mixing motor(kw) | 5.5 | 5.5 | ||
| Hoisting motor(kw) | 4.5 | 4.5 | ||
| Dimension(LxWxH)(mm) | 4500x2200x2800 | 4800x2200x2800 | ||
| Total weight(kg) | 5000 | 5500 | ||
| Model | JBTS30 | JBTS40 | ||
|---|---|---|---|---|
| Theoretical capacity(m³/h) | 30 | 40 | ||
| Max. concrete pumping pressure(Mpa) | 10 | 10 | ||
| Power type | Diesel | |||
| Main electric motor(kW) | 82 | 82 | ||
| Main oil pump | Kawasaki | Kawasaki | ||
| Main oil pump capacity(ml/min) | 71 | 112 | ||
| Theoretical delivery distance(m) | 120/350 | 160/500 | ||
| Hopper capacity(L) | 550 | 550 | ||
| Max. aggregate diameter(mm) | 20/30 | 30/40 | ||
| Inside diameter of delivery pipe(mm) | 125 | 150 | ||
| Loading capacity of the mixer(L) | 560 | 720 | ||
| Unloading capacity of the mixer(L) | 350 | 450 | ||
| Mixing motor(kw) | 5.5 | 5.5 | ||
| Hoisting motor(kw) | 4.5 | 4.5 | ||
| Dimension(LxWxH)(mm) | 4500x2200x2800 | 4800x2200x2800 | ||
| Total weight(kg) | 5000 | 5500 | ||
Application
High-rise buildings: Concrete transportation and pouring of high-rise buildings.
Water conservancy projects: Construction of large water conservancy facilities such as dams, levees, and reservoirs.
Airports and docks: Concrete for the construction of airport runways and docks.
Large shopping malls and urban and rural infrastructure: Construction of large shopping malls and urban and rural infrastructure.
Road and bridge construction: Concrete laying on pavements, bridge piers, beams and other parts.
Tunnel and subway construction: Concrete is transported to narrow and difficult-to-reach areas.
Foundation and basement construction: In the foundation and basement foundation, ensure the stability of the foundation and the smooth progress of construction.
Construction in rural and remote areas: Used in rural and remote areas without electricity supply, it can mix and pump concrete on site.
