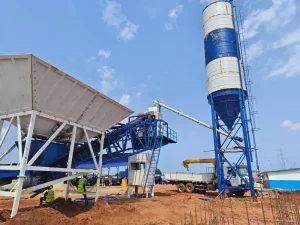

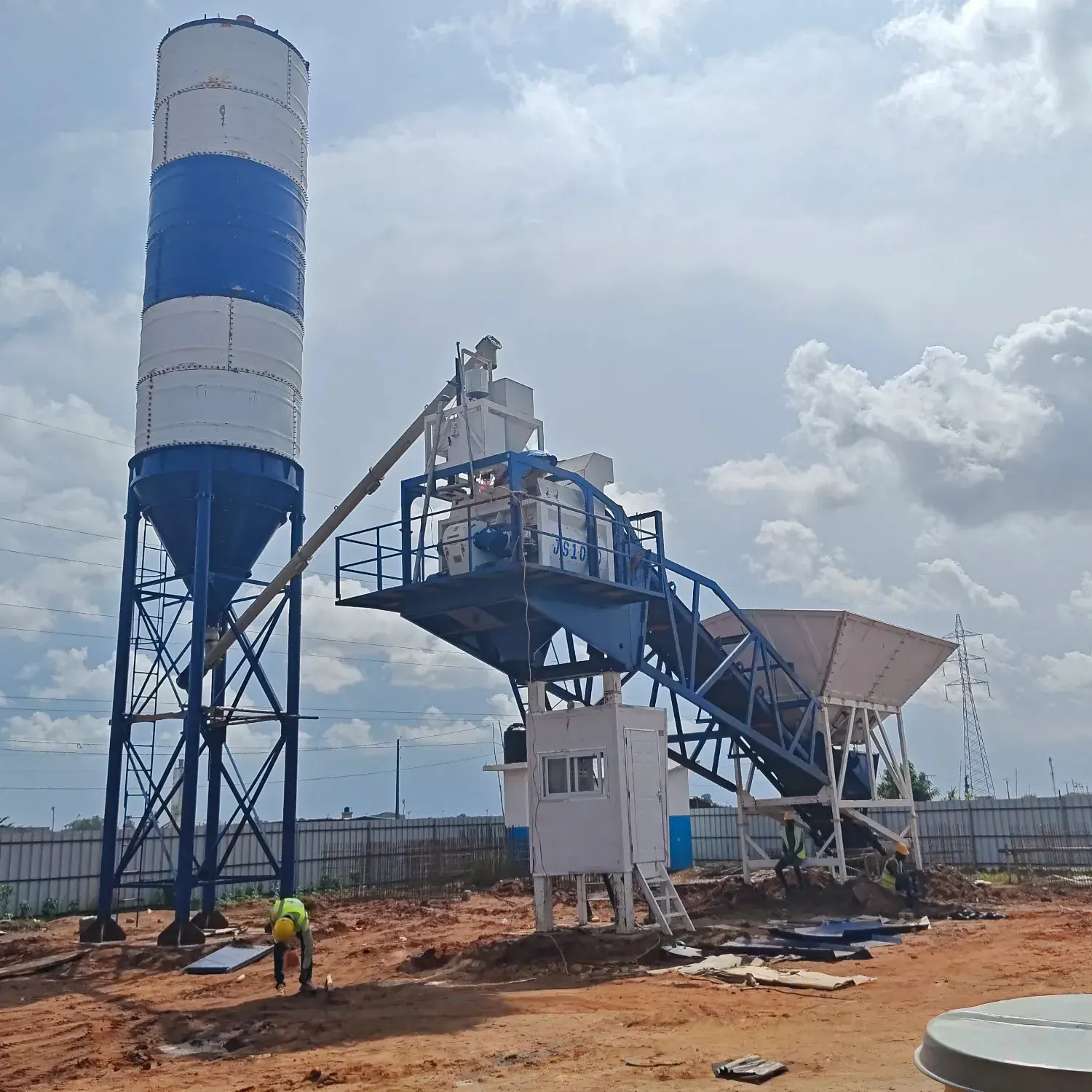

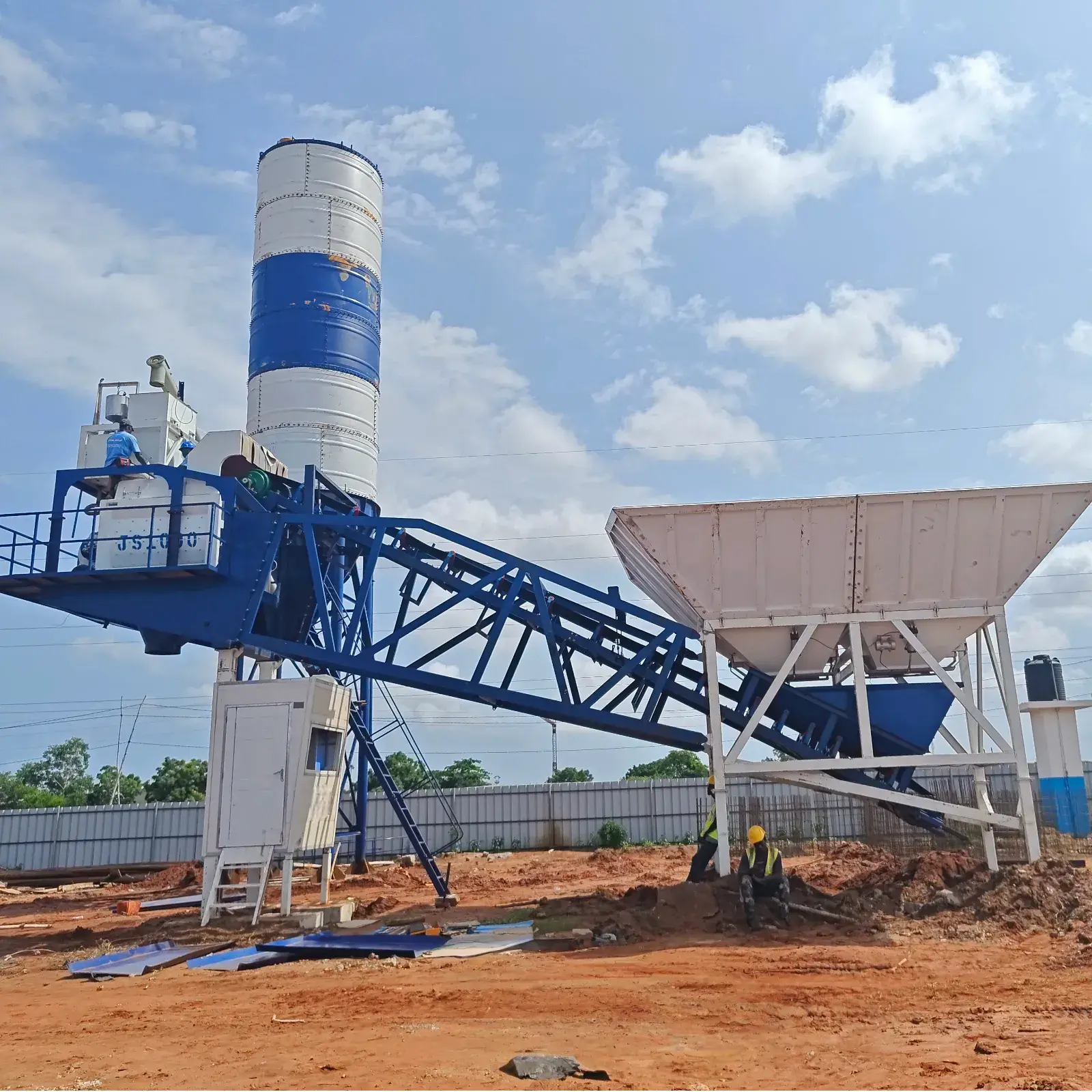

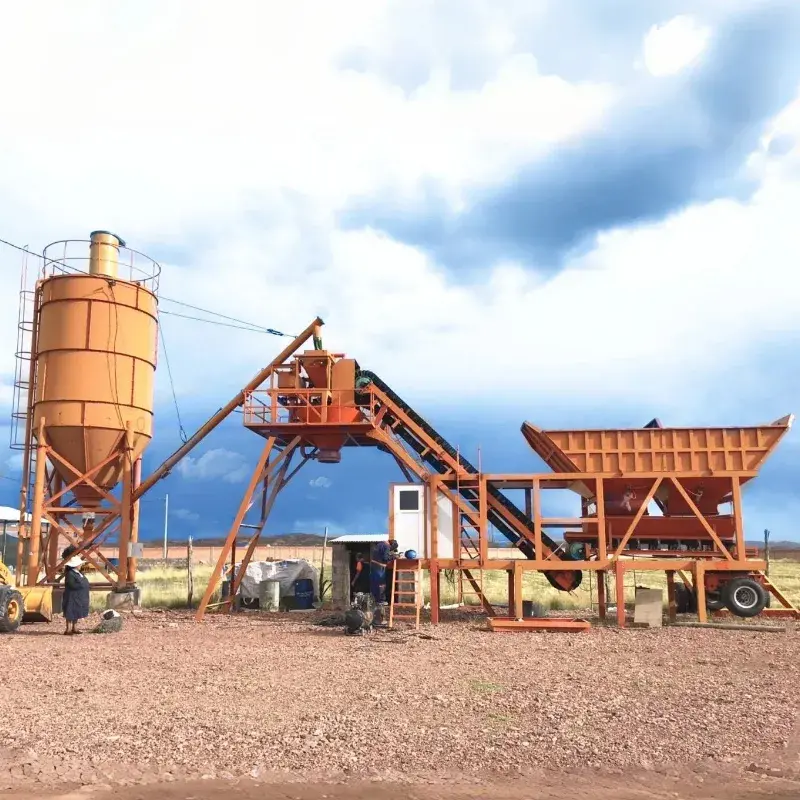

Mobile Concrete Batching Plant（YHZS Series）
Model: YHZS25/30,YHZS35,YHZS60,YHZS75,YHZS100,etc
Theoretical Productivity(m³/h): 25-100
Mixer Type: Twin-shaft horizontal
Mixer Power (kW): 53–140
Our mobile concrete batching plant utilizes a modular, containerized structure to achieve outstanding mobility and rapid deployment. The entire system can be swiftly disassembled and reassembled, significantly reducing relocation time and cost.
The plant delivers continuous, high-quality concrete under stable operation. We categorize models into the YHZM and YHZS series. Each series offers multiple capacity variants, spanning from 25 m³/h up to 180 m³/h, allowing for tailored selection according to project scale and concrete demands.
Introduction
Our mobile concrete batching plant utilizes a modular, containerized structure to achieve outstanding mobility and rapid deployment. The entire system can be swiftly disassembled and reassembled, significantly reducing relocation time and cost.
The plant delivers continuous, high-quality concrete under stable operation. We categorize models into the YHZM and YHZS series. Each series offers multiple capacity variants, spanning from 25 m³/h up to 180 m³/h, allowing for tailored selection according to project scale and concrete demands.

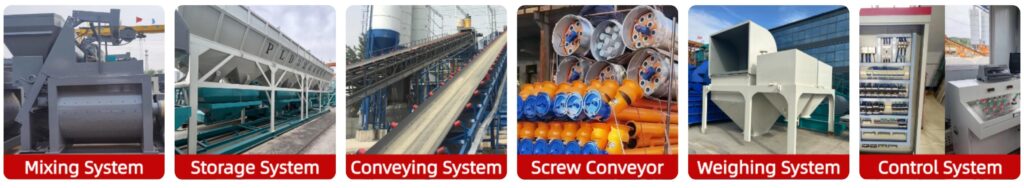

Main Components of Mobile Concrete Batching Plant（YHZS Series）
Mixing System
Common types of mixers include double shaft mixers and vertical shaft mixers. They are the core part of mobile cement batching plant, used to mix raw materials such as aggregates, cement, and water evenly.
Ingredient System
Including storage bins, measuring devices, and conveying devices, used for precise measurement and proportioning of various raw materials such as cement, sand, stones, etc., it can ensure accurate concrete supply.
Weighing System
The system mainly includes a hopper, weighing sensors, and electrical control system, responsible for precise measurement of raw materials, ensuring the stability of concrete formula. It has a high degree of automation and is easy to maintain.
Feeding System
Common conveying equipment includes belt conveyors, screw conveyors, etc.The conveying system is responsible for transporting raw materials such as aggregates, cement, water, etc. from storage locations to the mixing host.
Cement Storage System
The cement silo uses a fully enclosed steel structure for storage, and the cement is transported to the mixer through a screw conveyor to prevent moisture and pollution.
Control System
The control system is responsible for the automation operation of the entire portable concrete batch plant,and controls and adjusts it to achieve precise proportioning and production scheduling.
Technical Specification
| MODEL | YHZS25/30 | YHZS35 | YHZS60 | YHZS75 | YHZS100 |
|---|---|---|---|---|---|
| Theoretical Productivity(m³/hr) | 25 | 35 | 60 | 75 | 100 |
| Concrete Mixer | JS500 | JS750 | JS1000 | JS1500 | JS2000 |
| Aggregate bins capacity(m³) | 4 ×4 | 4 ×4 | 4 ×4.5 | 4 ×4.5 | 3 ×20 |
| Aggregate feeding type | By belt | ||||
| Aggregate accuracy | ±2% | ±2% | ±2% | ±2% | ±2% |
| Water+Cement+ Additive accuracy | ±1% | ±1% | ±1% | ±1% | ±1% |
| Total power（kW） | 52 | 70 | 83 | 110 | 140 |
| Discharging height（m） | 4 | 4 | 4 | 4 | 4 |
Application
Mult-Point Construction Projects: For large-scale engineering proijects invoving mutiple dispersed locatins, mobile mking plants can efectively reduce materialtransportation costs and improve overall work efficiency.
Emergency Rescue And Post-Disaster Reconstruction: in emergency construction after natural disasters or other emergencies, its rapid response capablityis particularly important.
Short-ferm Proiects:For stuations such as road repairs and bidge construction where a large amountof concrete supply is neded in a short period oftime, t can provide an immediate and reliable solution.
