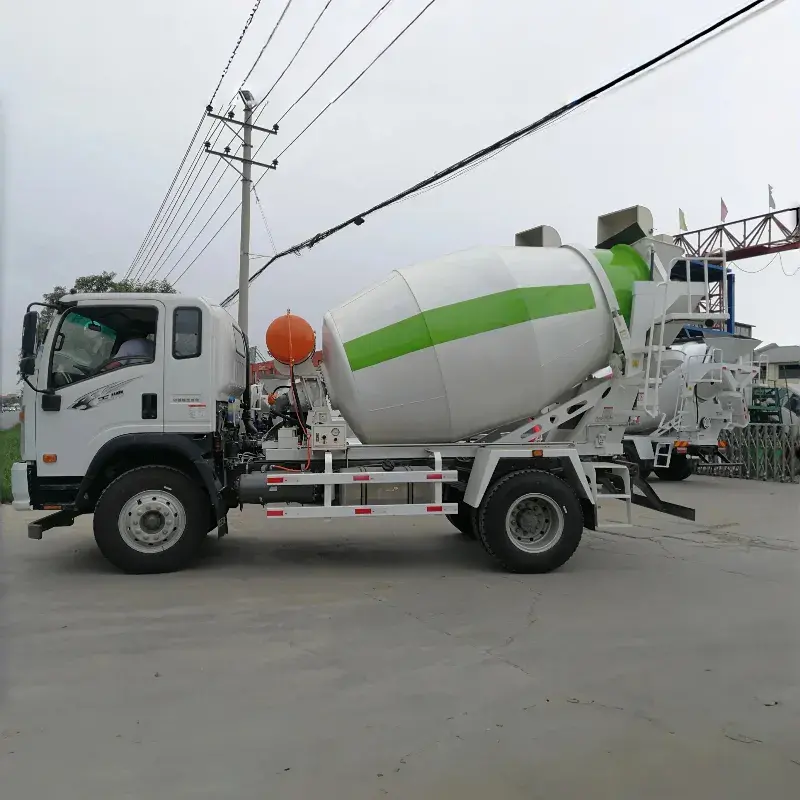

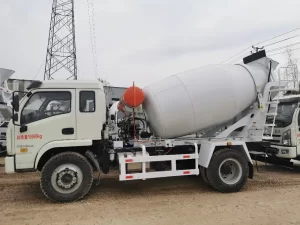

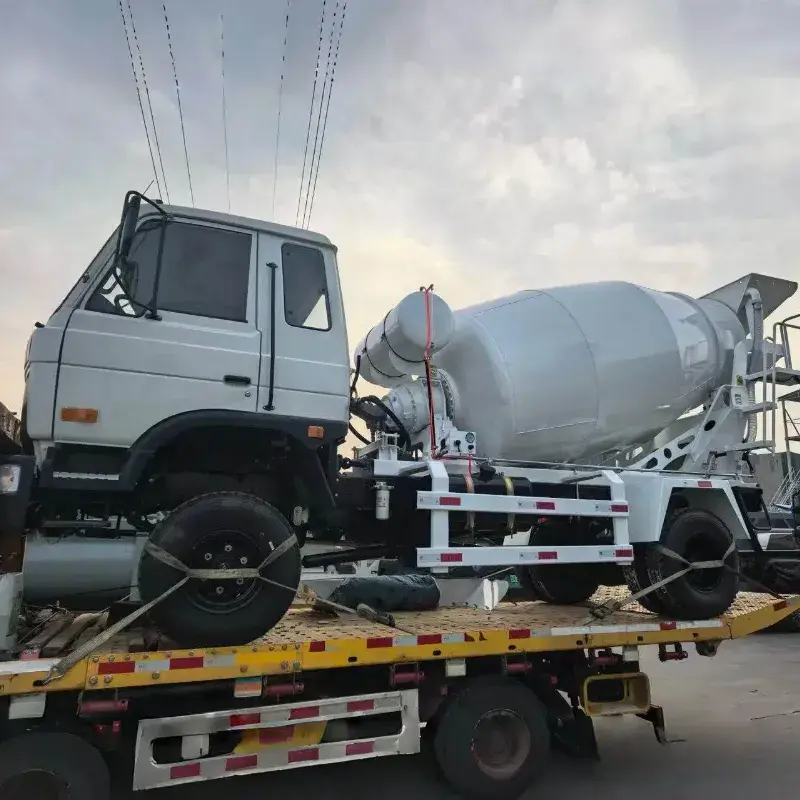

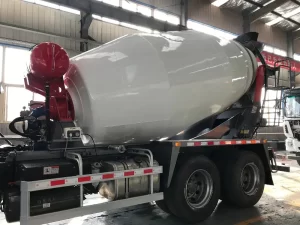

Transit Mixer & Mixer Truck
Model:CMT3-CMT14
Mixing Capacity(m3):3-14
Charging Speed(m3/min):≥2.5
Discharging Speed(m3/min):≥1.5
The concrete mixer truck is mainly used to transport the produced concrete from the concrete batching plant to the pouring place.Then can delay concrete primary concretion, avoid concrete stratification and separation, ensure the concrete can be normal at work site.
Introduction
The concrete mixer truck is mainly used to transport the produced concrete from the concrete batching plant to the pouring place.Then can delay concrete primary concretion, avoid concrete stratification and separation, ensure the concrete can be normal at work site.

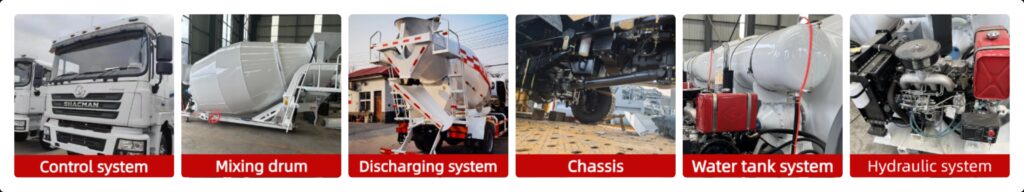

Main Components of Transit Mixer & Mixer Truck
Chassis
To provide power and support for vehicle operation, a heavy-duty concrete mixer truck chassis is usually used, and the frame is welded with high-strength steel to support the weight of the mixing drum and concrete, with high load capacity and the ability to adapt to complex road conditions.

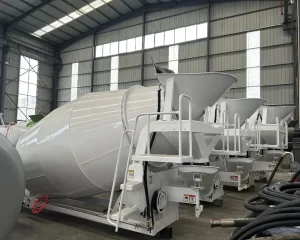

Mixing Drum
The container for loading concrete is the core component of the mixer truck, made of high-strength steel plates, with double spiral blades welded on the inner wall, in a conical or pear shaped structure, used for mixing concrete during transportation.
Hydraulic System
Adopt international top brand in hydraulic driving filed, such as Germany, Italian, American brand with integral structure ,excellent performance, to meet customers’ various special need.

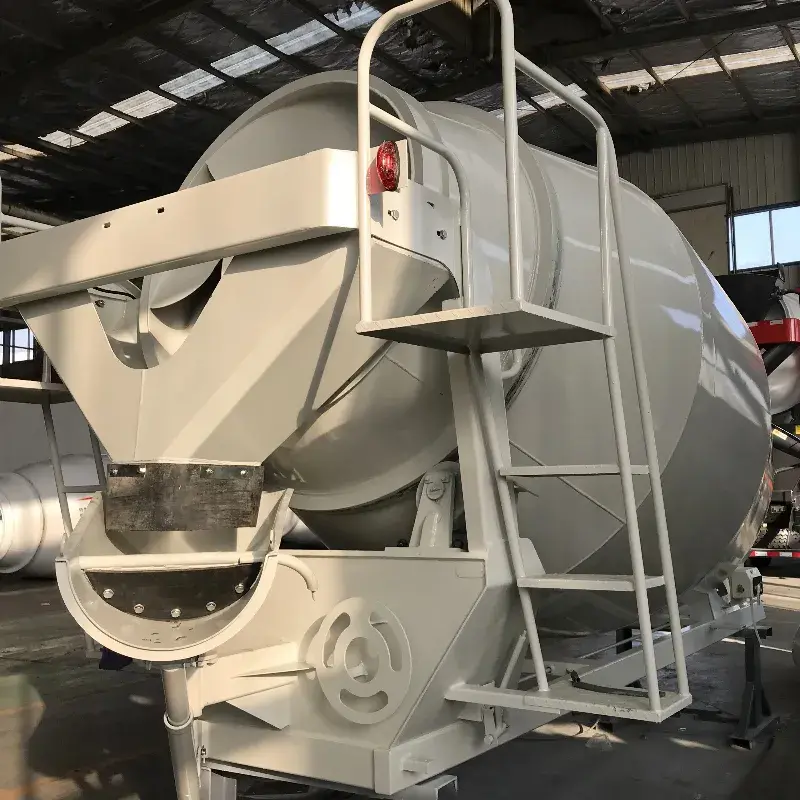

Feed Inlet And Discharge Chute
The feeding port is located at the tail of the mixing drum and is used to add materials into the mixing drum. The rear of the mixer truck is equipped with a discharge chute, which can be manually or hydraulically controlled to adjust the angle accurately and guide the concrete to be discharged smoothly.
Control System
Located inside the cab, it integrates buttons, handles, display screens, etc. to control the mixer drum speed, tilt angle and other functions of the mixer truck. It adopts three-point control, linkage inside the cab and on both sides of the tail to achieve control of the mixer drum, which is flexible, convenient and fast.
Water Tank System
Have various volume water tanker, can feed the water mixing and cleaning, enlarged water pipe and various feeding solution. Can convenient customer, water feeding solution can use air pressure ,reducer pump ,electronic pump, etc, can meet different requirement.
Blade anti-wear protection
Modified logarithmic helical curve type of blade .In light of special need of wear resistance, all blades are mounted with anti-wear protection parts, not only prolonging vehicle life, but also synchronizing the wear of drum and blades. Blades are made of special cold-forming pressing molder, welded with drum body by new welding process without obvious trance.
Technical Specification
| Model | CMT-3 | CMT-4 | CMT-5 | CMT-6 | CMT-8 | CMT-10 | CMT-12 | CMT-14 |
|---|---|---|---|---|---|---|---|---|
| Mixing Capacity (m³) | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 |
| Charging Speed (m³/min) | ≥ 2.5 | ≥ 2.5 | ≥ 2.5 | ≥ 2.5 | ≥3 | ≥3 | ≥3 | ≥3 |
| Discharging Speed (m³/min) | ≥ 1.5 | ≥ 1.5 | ≥ 1.5 | ≥ 1.5 | ≥2 | ≥2 | ≥2 | ≥2 |
| Water Tank Capacity (L) | 150 | 150 | 200 | 200 | 450 | 450 | 450 | 450 |
| Mixing Tank Material | 16Mn-Alloy Steel | |||||||
| Tank Body Thickness (mm) | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Head Thickness (mm) | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Hydraulic Pump | Sunny-USA / Eaton- USA /PMP- Italy | |||||||
| Hydraulic Motor | Sunny-USA/ Eaton- USA /PMP- Italy | |||||||
| Reducer | ZF Brand-Germany /Bonfiglioli- Italy /PMP- Italy | |||||||
| Radiator (L) | 12 | 12 | 12 | 12 | 18 | 18 | 18 | 18 |
| Available Chassis | HOWO/FOTON/ SHACMAN | |||||||
Application
Large Construction Projects：Essential for high-rise buildings, commercial complexes, and bridges, where large volumes of concrete are needed. Transit Mixers ensure fresh, workable concrete arrives consistently.
Infrastructure Development：Ideal for roads, bridges, airports, and ports, where remote or dispersed sites require concrete mixing during transit to reduce waiting time.
Urban Construction Projects：Suitable for cities with limited space and heavy traffic, as these vehicles are maneuverable and can deliver concrete directly to tight sites.
Emergency and Repair Projects：Crucial for rapid repairs (e.g., road or bridge fixes) and disaster recovery, as they can quickly transport and mix concrete on-site.
Specialized Concrete Projects：Ideal for projects requiring customized concrete (e.g., high-strength or lightweight), as Transit Mixers can mix precise batches during transit.
